Visualizing Results

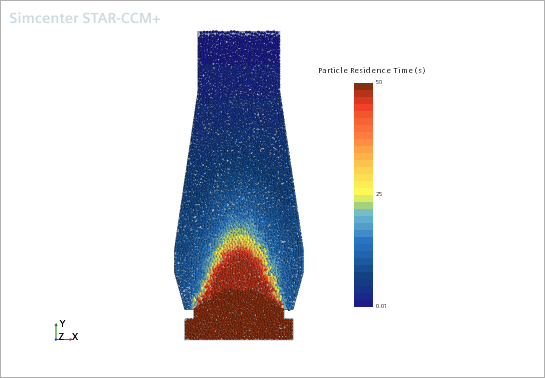

When the solver is complete, the Scalar Scene 1 in the Graphics window appears.

See below:

Particles that have residence time of more than 36.5 s constitute the deadman region. In this region, particles move rather slowly and hence have high residence times.
