Directed Meshing: Electrical Machine

This tutorial demonstrates how to use the directed meshing tool in STAR-CCM+. Directed meshing allows you to generate a high-quality structured mesh by creating quadrilateral elements on a surface of a body and then sweeping them through its volume.

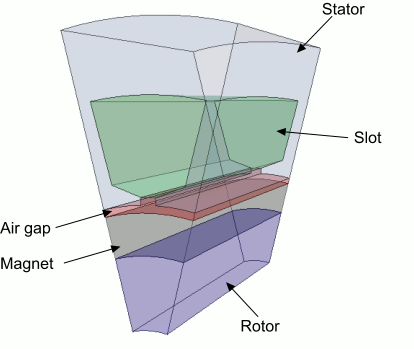

In this tutorial, you are given a section of an electrical machine comprising five parts: rotor, magnet, air gap, slot, and stator. The parts are all connected and have regular section profiles, making this geometry a good case to use with directed meshing.
