Displaying Diagnostic Messages from the Server and Client

To troubleshoot client-server connections, the server locator allows you to gather diagnostic information from the client and server in one place.

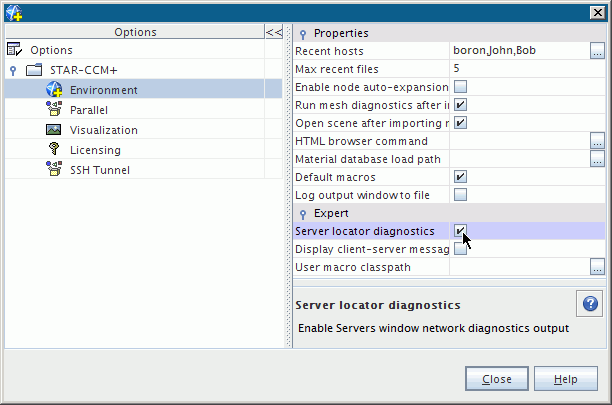

To make the server locator available, select Tools > Options. This activates the Options dialog.

Open the STAR-CCM+ node, then select the Environment node to access its properties, which include the Server locator diagnostics expert property.

Activate the checkbox of this property to have messages generated by the client and server. The client and any connected server will print messages related to the server locator in the Output window.

For complete information about client-server activity, use this feature by following these steps:

Start a server with a line command:
```
% starccm+ -server -cout file.sim
```
Launch the workspace and connect to the server.
Activate the server locator option. After a few seconds diagnostic information from the client and server will be generated.
