Connecting a Client from the Command Line

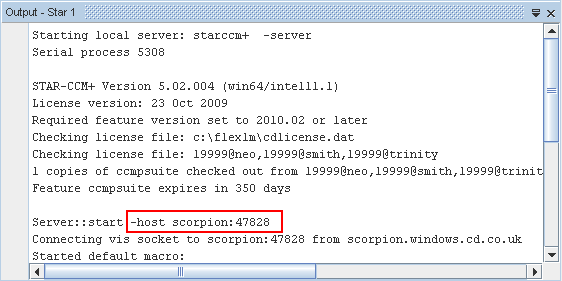

When Simcenter STAR-CCM+ starts a new server, it prints the hostname and port number in the Output window in a form that matches the syntax required by the Simcenter STAR-CCM+ launch command.

Using the output shown above, the command to launch a client that connects to this server would be:

starccm+ -host scorpion:47828

The same output will be provided when a server is launched remotely from the command line; it is then convenient to copy and paste the relevant portion in order to launch a local client.
