A Scene Will Not Open

If you are unable to open a scene, you can obtain information for troubleshooting.

Right-click on the Scenes node and select Test Graphics.
Otherwise, right-click on the node of the particular scene and select Report.

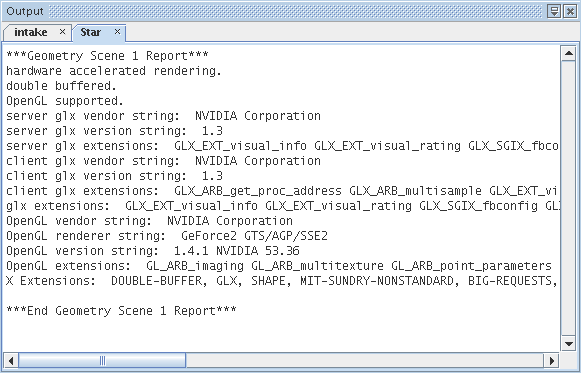

Either command produces a report in the Output window containing technical details on the graphics hardware.

If the report ends with ***Report generated remotely***, graphics are being rendered on the server side of your simulation. For details, see Rendering Graphics on a Remote Server.

If you wish, simply send the information to support by selecting the text in the Output window, copying it and pasting it into an e-mail message.
