Selecting the Physics Models

You model the unsteady turbulent multiphase flow of oil and air by using the Mixture Multiphase model. In this simulation, the two phases oil and air can exist either as a dispersed mixture of phases or as segregated phases. To account for this behavior, you activate Large-Scale Interface (LSI) detection. LSI identifies a band of cells containing the sharp interface between the two phases. The Adaptive Interface Sharpening (ADIS) scheme is a discretization scheme for the convective term of the volume fraction that uses a high-resolution interface capturing (HRIC) scheme in the vicinity of a large scale interface and a standard total variation diminishing (TVD) scheme away from it. The large scale interface band consists of two cell layers.

To select the physics models:

For the physics continuum, Continua > Physics 1, select the following models in order:


Group Box	Model
Enabled Models	Two Dimensional (selected automatically)
Time	Implicit Unsteady
Material	Multiphase Multiphase Interaction (selected automatically)
Multiphase Model	Mixture Multiphase (MMP) Gradients (selected automatically) Segregated Flow (selected automatically)
Viscous Regime	Turbulent Reynolds-Averaged Navier-Stokes (selected automatically)
Reynolds-Averaged Turbulence	K-Epsilon Turbulence Two-Layer All y+ Wall Treatment (selected automatically) Wall Distance (selected automatically) Realizable K-Epsilon Two-Layer (selected automatically)
Optional Models	Gravity
Optional Models	Solution Interpolation

Click Close.

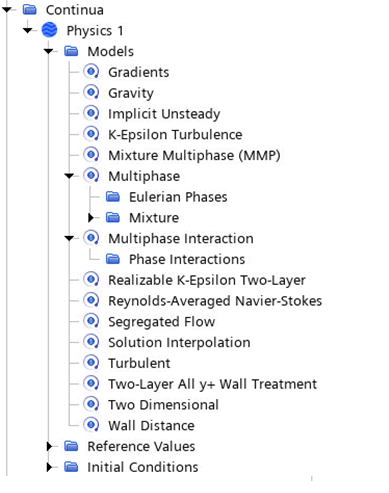

To review the models, open the Physics 1 > Models node.

You use the Adaptive Interface Sharpening (ADIS) convection scheme for mixture multiphase in cases where sharp interfaces and dispersed mixtures co-exist between the same pair of phases.

Edit the Physics 1 > Models > Mixture Multiphase (MMP) node and set the following properties:


Node	Property	Setting
Mixture Multiphase (MMP)	Convection	Adaptive Interface Sharpening (ADIS)
Large - Scale Interface Detection	Number of Cell Layers for Interface Band	2

Save the simulation.
