Region Combination

To have two or more computational domains share physical properties, combine regions.

There are two approaches that you can use to combine regions:

Copy properties between regions and then create interfaces between adjacent regions.

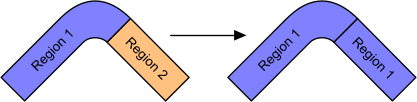

Combine the regions into one, as the following diagram illustrates, and then fuse or create interfaces between any adjacent boundaries.

If you do not fuse or create interfaces between adjacent boundaries, Simcenter STAR-CCM+ solves the combined regions as if they are separate regions with the same properties. That is, there is no flow between the regions.

Note	It is more computationally efficient to fuse adjacent boundaries than to use interfaces.

You can combine multiple regions, providing:

All regions share a surface or volume mesh representation.
You associate all regions with the same mesh and physics continuum.

Initializing or running the solver reintersects interfaces. Therefore, combining regions before creating interfaces is more efficient, because the combination process resets interfaces and removes vertices from the intersection. Also, if these interfaces reference faces and vertices, the combination can remove them from other regions.

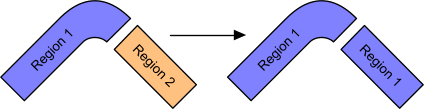

Simcenter STAR-CCM+ allows combined regions to be non-contiguous. That is, there is no contact between the computational domains, but they share physical properties. The following diagram illustrates the combination of non-contiguous regions.
