Prescribing Constant Temperature in Fluid Cells

In modeling some applications, such as air conditioning units, it may be desirable to impose the temperature distribution within a range of fluid cells. This section describes a procedure that uses the discretized form of the energy equation to fix a target temperature that you specify.

The steps are as follows:

Create a cell set containing the cells for which the temperature is to be fixed.
This cell set has a corresponding field function with a default name. Here, the field function is CellSetVar_1.

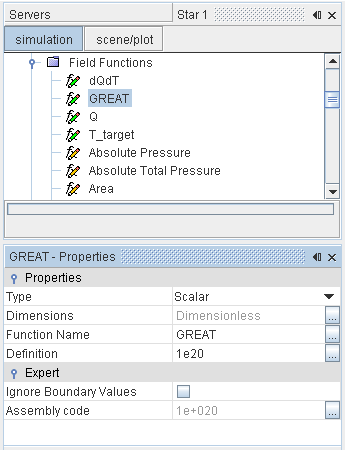

Create a field function, GREAT, that contains a number sufficiently large to mask the contribution from the usual energy fluxes in the designated cells, but not too high to cause a floating point exception.
For example, you could use 1000 times the maximum local value of $(m C_{p}) / V$ or $k L / V$ , where $m$ is the mass flow rate into the cell, $C_{p}$ is the specific heat, $V$ is the cell volume, $k$ is the thermal conductivity, and $L$ is some characteristic cell length. In this example, GREAT is set to 1e20.

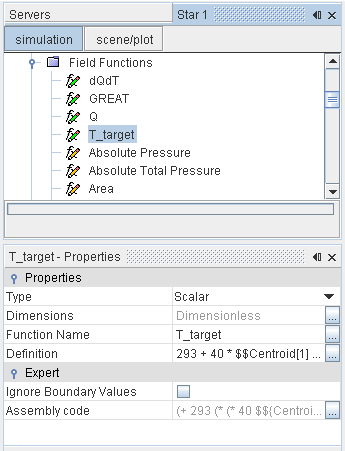

Create a field function for the user-defined temperature field.

Here, for example, T_target is set to:

293 + 40 *$$Centroid[1] * (1 - $$Centroid[1])
Using these three field functions, it is possible to define a further field function for the Volumetric Heat Source, Q, that applies to cells in the cell set:

($CellSetVar_1) ? $GREAT*($T_target - $Temperature) : 0

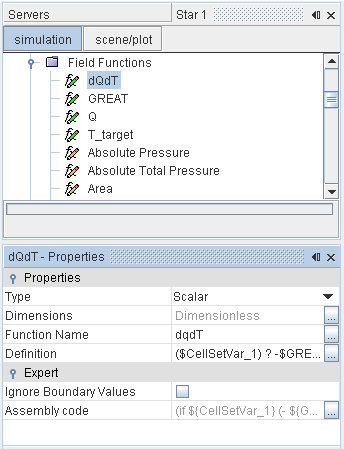

The differential of this field function with respect to temperature is also required as a field function.

Here, it is defined as dQdT, with the formula:

($CellSetVar_1) ? -$GREAT : 0

Having created the necessary field functions, the final step is to apply them to the relevant region values:

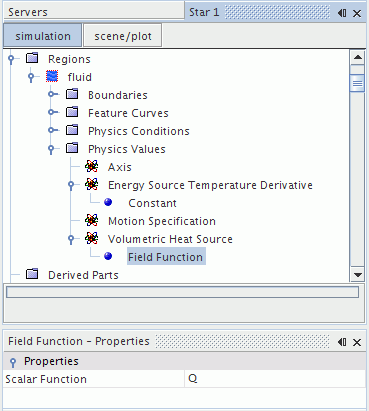

Set the Volumetric Heat Source of the region to the field function Q:

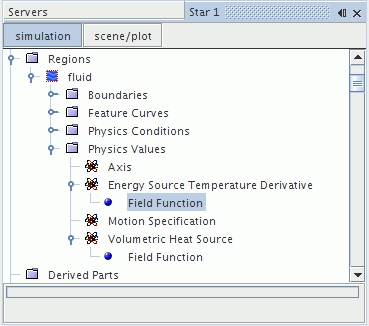

Set the Energy Source Temperature Derivative to the field function dQdT:
