Defining Harmonic Balance Parameters

The Harmonic Balance Flow and Energy model requires definition of blade row parameters.

In this example, a single blade row that consists of 36 blades is required. The number of modes is kept at the default value of 1, which provides a sufficiently accurate solution for the purposes of this tutorial. Increasing the number of modes increases accuracy but also requires greater computational resources.

To specify the Harmoic Balance parameters:

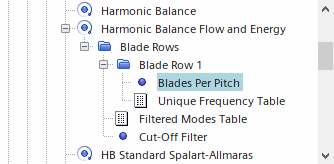

Expand the Continua > Harmonic Balance > Models > Harmonic Balance Flow and Energy manager, right-click the Blade Rows node, and select New.
A new node named Blade Row 1 appears under the Blade Rows node and is selected automatically.
Select the Blade Row 1 > Blades Per Pitch node and set Number of Blades to 36.
Leave the Pitch property at its default setting of radians.
Save the simulation.
