Heat Exchanger UAL Reference

This option is made available for a solid-fluid type dual stream heat exchanger, which is created between a solid region and a fluid region or vice versa.

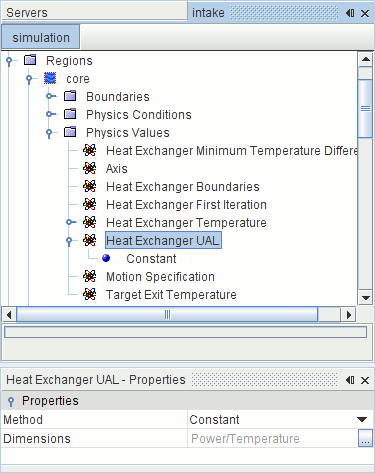

For a solid-fluid type heat exchanger, when the basic dual stream option is chosen as the Heat Exchanger Method, the Heat Exchanger UAL option is added as a physics value node to the fluid region. This option is entered as a scalar profile.

The heat exchanger UAL scalar field represents the local (or cell) heat exchange rate, that may either be specified as a constant or a function of the fluid properties. This user-specified value is added to the source term of the fluid energy equation and subtracted from the source term of the solid energy equation.
