Fire and Smoke Wizard: Steckler Room

This tutorial demonstrates the Fire and Smoke Wizard. The geometry and fire settings closely resemble those Steckler reported, including radiation and wall heat absorption. This setup allows a preliminary comparison with experimental data.

Before you begin, take note of the following important conventions in the Fire and Smoke Wizard:

Gravity is in negative z-direction (z pointing up).
Reference Density is 1.2 Kg/m^3.
Reference Altitude is 0, 0, 0 m.

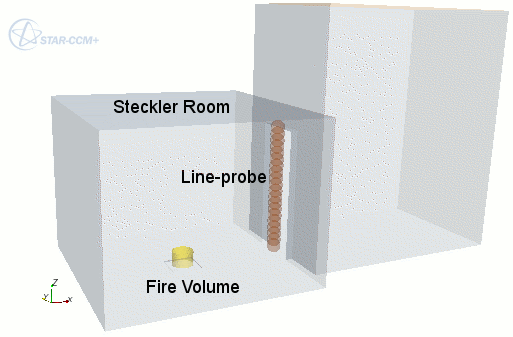

The problem geometry is shown below.

In this scene, the location of the line-probe corresponds to the experimental measurement stack.
