Specifying the Non-Stack Solid Material Properties

The solids that are not part of the battery stacks consist of different solid materials. These solid materials are modeled by a multi-part solid.

To specify the non-stack solid material properties:

Expand the Regions > Non-Stack Battery Parts > Physics Values > Material Part Groups node.

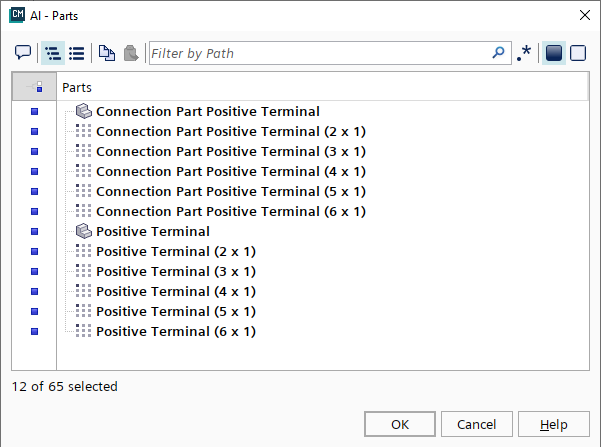

Select the Al node and set Parts to all the Connection Part Positive Terminal and all the Positive Terminal parts (12 parts in total).
Select the Cu node and set Parts to all the Connection Part Negative Terminal and Negative Terminal parts (12 parts in total).
Select the Heat Shield node and set Parts to all the Heat Shield parts (5 parts in total).
Select the Polyethylene node and set Parts to all the Insulation Plate Negative Terminal and Insulation Plate Positive Terminal parts (12 parts in total).
Select the UNSG104000 node and set Parts to all the Cell Casing, Cell Lid, Safety Vent and Vent Valve parts (24 parts in total).
Save the simulation.
