Running the Co-Simulation

Run the co-simulation and visualize the flow solution and the imported solid displacement.

To run the co-simulation:

In the Simcenter STAR-CCM+ simulation, click (Run).
Simcenter STAR-CCM+ launches the Simcenter Nastran solver and the co-simulation starts.
When the simulation is complete, expand the Scenes node.

The simulation file already contains a predefined scene, Scene 1, that displays the fluid velocity and the fluid pressure at the fluid-structure interface. To visualize the solid displacement, add a displayer for the imported displacement field:

Open Scene 1.
Right-click the Scene 1 node and select New Displayer > Scalar.
Rename the Scalar 1 displayer to Imported Displacement.

Edit the Scene 1 node and set the following properties:


Node	Property
Mesh	Representation	Volume Mesh
Fluid Pressure	Representation	Volume Mesh
Fluid Velocity	Representation	Volume Mesh
Imported Displacement
Parts	Parts	Regions > Fluid > Boundaries > WallFSI
Scalar Field	Function	Co-Simulations > Co-Simulation: Displacement > Magnitude
Color Bar	Color Map	blue-red balanced

Select the Scene 1 > Attributes > Annotations > Solution Time node and set Representation to Volume Mesh.

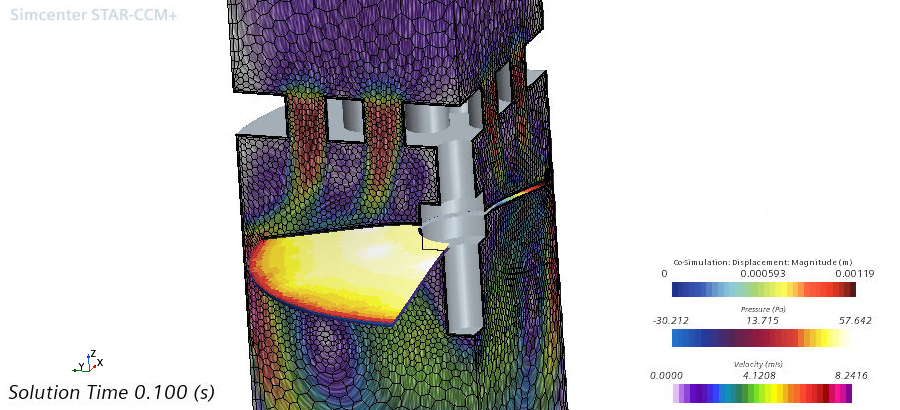

In the scene, zoom in and move the color bars as required:
Save the simulation.
