Moving Reference Frames: Rotating Fan

This tutorial outlines the steps that are required to set up and run a rotating radial fan analysis. It uses the Moving Reference Frame model, a steady-state approach that involves two or more frames of reference that can be stationary or moving relative to each other.

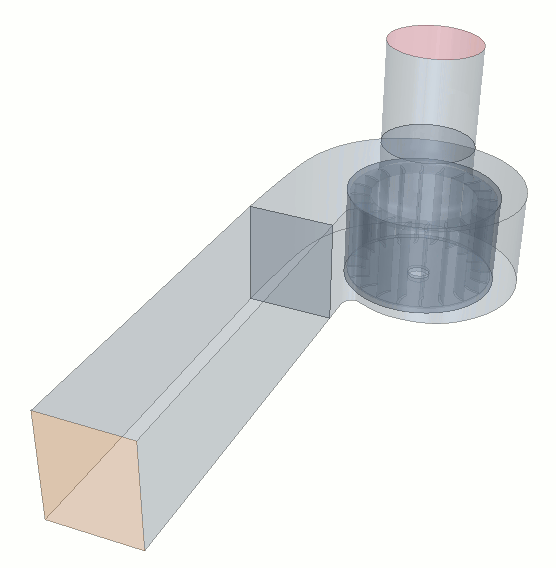

The problem involves an idealized fan assembly whose axis and 20 equally spaced blades are rotating at 2,000 rpm while the external body remains stationary. Air enters through the inlet, that is shown in red below, at 5 m/s and exits through a pressure boundary, that is shown in orange.

In this case, two reference frames are used for the analysis — a spinning one representing the fan and blades and a stationary one representing the fan body and inlet section.
