Setting Up the Physics Models

Models define the primary variables of the simulation, including pressure, temperature and velocity, and what mathematical formulation is used to generate the solution.

In this example, the flow is turbulent and compressible. The Coupled Flow Model is used together with the default K-Epsilon Turbulence model.

For the physics continuum Continua > Physics 1, deactivate Auto-select recommended models and select the following models, in order:

Group Box	Model
Material	Gas
Flow	Coupled Flow
Equation of State	Ideal Gas
Energy	Coupled Energy
Time	Steady
Viscous Regime	Turbulent
Turbulence	Reynolds-Averaged Navier-Stokes
Reynolds-Averaged Turbulence	K-Epsilon Turbulence
K-Epsilon Turbulence Models	Standard K-Epsilon
K-Epsilon High y+ Wall Treatment	High y+ Wall Treatment

Click Close.

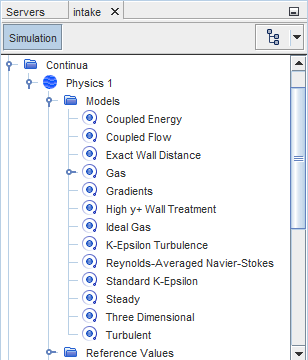

In the intake window, open the Continua > Physics 1 > Models node.

The selected models now appear within that node.
Save the simulation.
