In-Place Contact

An in-place contact is a direct connection between two part surfaces.

There are two types of in-place contacts: weak and strong. A strong in-place contact allows you to generate a conformal mesh between the two surfaces, whereas a weak in-place contact does not. Both types of in-place contact become interfaces when you assign the parts to regions. You can see whether an in-place contact is strong or weak by checking the Conformality property. See In-Place Contact Properties.

The following actions create strong in-place contacts:

Import a surface mesh.
- Make sure you activate the Create Part Contact from Coincident Entities checkbox.
Create a geometry part from a 3D-CAD model.
- Make sure you activate the Create Part Contact from Coincident Entities checkbox.
Executing the extract volume or imprint mesh operations.

The following actions create weak in-place contacts:

Manually creating or finding part/part contacts between parts.
Manually creating a part contact between two surfaces.
Executing the surface wrapper operation.

Examples of In-Place Contacts

The following examples show two types of in-place contacts. The yellow, dashed line highlights surfaces where the mesher aims to generate a conformal mesh.

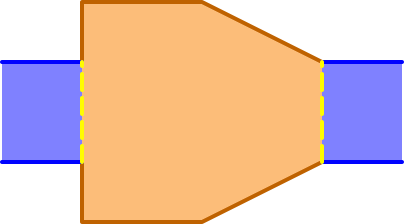

This first diagram illustrates a contact between two part surfaces that match exactly.

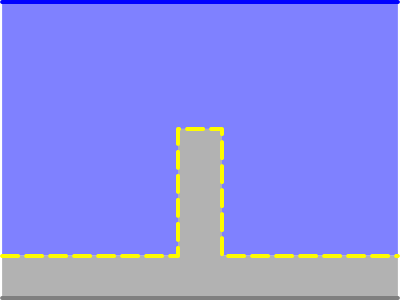

This second diagram illustrates an in-place contact between two part surfaces that have different areas. In this case, the contact applies to both surfaces, but the mesher only aims to produce a conformal mesh between the areas of the part surfaces that are coincident.
