Running the Design Study and Exporting 2D Field Data to Simcenter Reduced Order Modeling

You run the DOE design study and export the Mach Number and Pressure scenes to Simcenter Reduced Order Modeling.

To reduce the computation time, run multiple jobs at the same time. Additionally, you can run each job on multiple cores.

Select the Design Studies > Cl_vs_Cd > Settings > Run Settings node and set the following properties:


Property	Setting
Save Simulation Files	None
Simultaneous Jobs	4
Compute Processes	3

Note	The number of cores required is equal to Simultaneous Jobs * Compute Processes. The run settings specified require a 12 core machine.

Right-click the Design Studies > Cl_vs_Cd node and select Run Study.
While running the study, Design Manager runs multiple cycles. After each cycle, the designs are ranked. This procedure continues until all 80 designs are evaluated.
Save the Design Manager project.

After the 80 designs are complete, you export the 2D field data to Simcenter Reduced Order Modeling.

Right-click Cl_vs_Cd and select Open in Simcenter Reduced Order Modeling.
For each scene that you selected for export, Design Manager exports the following two files:
- The artifact JSON and scene gray-scale image files into the compressed folder Cl_vs_Cd_rom_data.zip.
- The rominput JSON argument file to launch Simcenter Reduced Order Modeling Cl_vs_Cd_rom.rominput.
Simcenter Reduced Order Modeling automatically opens the 2D field data:

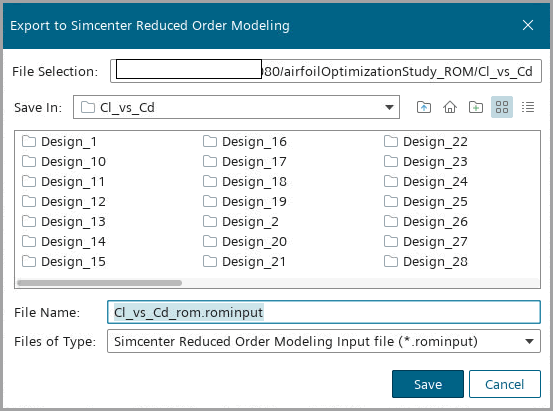

In the Export to Simcenter Reduced Order Modeling dialog, accept the default names and click Save.

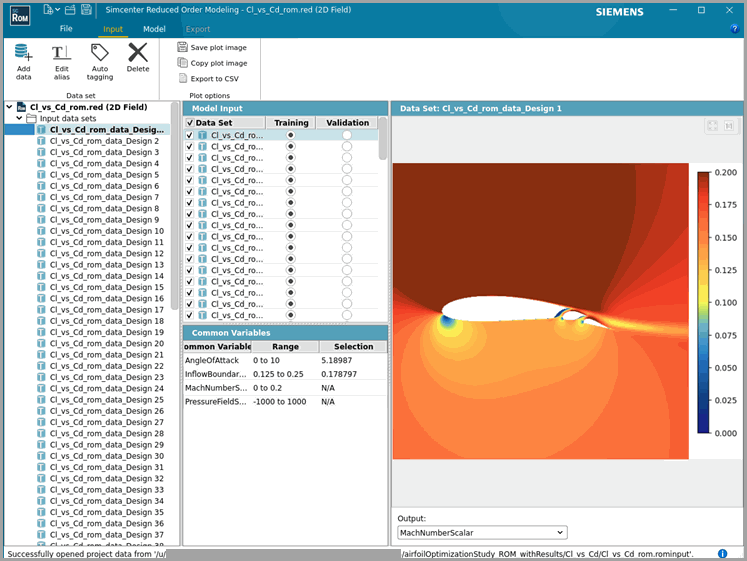

The scenes are automatically imported in Simcenter Reduced Order Modeling and ready for 2D model creation:
