Importing Displacement and Rotation Data
In Simcenter STAR-CCM+, you can import the RCAS displacement and rotation data from the RCAS Imported Model node. The imported RCAS displacement and rotation data become available in Simcenter STAR-CCM+ as the Imported Displacement and Imported Rotation field functions.
The RCAS mesh and motion data are stored in the same *.in file.
To import the RCAS motion data:
-

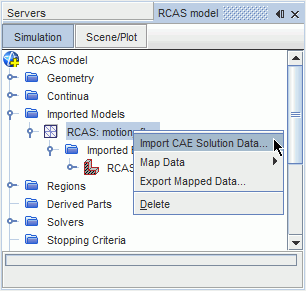

Right-click the imported
RCAS model node and select
Import CAE Solution Data...
- In the Open dialog, select the RCAS model *.in file that contains the mesh and motion data.
-
In the
Import Data Options dialog, specify the
Angle Units and
Import Time, then click
OK.

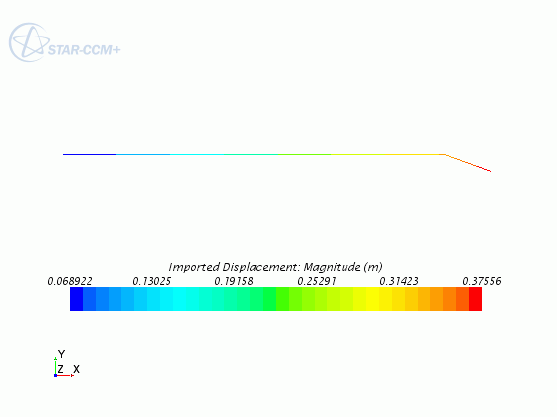

You can view the imported displacement and rotation data in a scene by selecting the corresponding field functions.
