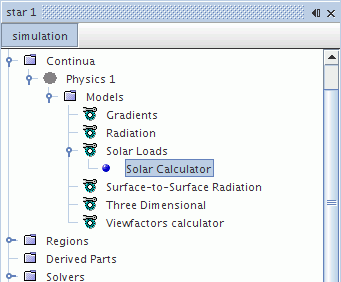

The Solar Calculator

For a chosen date, time, and geographical location, the Solar Calculator computes sun altitude (elevation) and azimuthal angles, along with the corresponding direct and diffuse solar fluxes. Select the Solar Calculator node to access the properties that are required by the tool.

Additional inputs include a sunshine factor to accommodate the clouds and a diffuse fraction to consider a fraction of solar radiation as diffuse (the rest is direct flux). The solar calculator automatically includes a correction due to refraction of solar radiation through the atmosphere of the earth.

For unsteady simulations, the solar calculator automatically refreshes solar values at every time-step.

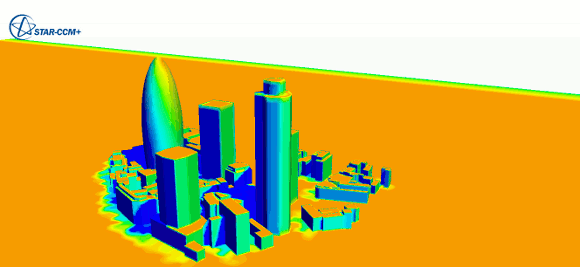

The following screenshots are examples of scalar displays using results from the solar calculator.

Solar Calculator Properties

Latitude: Latitude in degrees (north positive, south negative; default 51.47917, location of Greenwich, United Kingdom).
Longitude: Longitude in degrees from Greenwich, United Kingdom (east positive, west negative; default 0.0).
Time Zone: Time that is offset with respect to UTC (east positive, west negative; default 0.0 hr).
Year: Starting year in the Gregorian calendar (default 2000).
Month: Starting month of the year.
Day: Starting day of the month.
Hour: Starting local time (24-hour format; default 12:00 noon).
Minute: Starting minute.
Azimuth: Sun direction vector horizontal component (read-only).
Altitude: Sun direction vector vertical or elevation component (read-only).
Direct Solar Flux: Solar radiative energy directly from the sun along the specified direction vector (read-only).
Diffuse Solar Flux: Solar radiative energy from the surrounding environment (read-only).
Current Solar Time: Starting solar time plus elapsed solar time (read-only).
Diffuse Fraction: Fraction of total solar flux to be considered as diffuse (default 0.0); remainder is direct flux.
Sunshine Factor: Factor by which total solar flux is reduced to take into account a cloudy sky (default 1.0).
