Exporting a Part

This section describes how to export leaf-level parts.

Leaf-level parts can be exported as surface mesh files using any of the following formats:

pro-STAR database file (.dbs)
Stereolithography (.stl)
NASTRAN shells (.nas)
PATRAN shells (.pat)
pro-STAR shell input (.cel/.vrt/.inp)
FELISA Front Surface (.fro)
JT Open (.jt)

When exporting 3D-CAD, CAD, and shape parts, the current tessellation that is specified for the surface is used.

3D-CAD parts can also be exported as Parasolid Transmit files from within the 3D-CAD modeler.

To export a part:

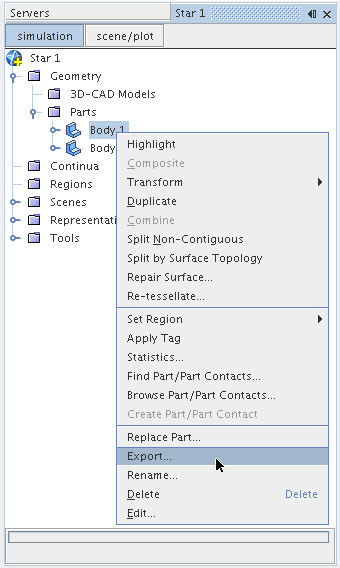

Right-click the part node and select Export... from the pop-up menu:

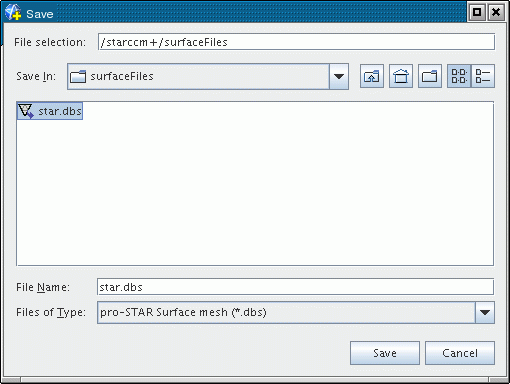

The Save dialog appears. You can only save one part at a time using this method.
Specify a directory for the file.
In the File Name filed, enter a suitable name.
From the Files of Type field, select the file format.
Click Save.
