Defining a CFDSpecies

A CFDSpecies is the species that GT-SUITE passed to Simcenter STAR-CCM+ during a coupled simulation. GT-SUITE writes the material properties for these species when you run the simulation preprocessing.

The following steps assume that you are defining a CFD species map, as detailed in the previous section.

To define a CFDSpecies:

In the Edit Object dialog of the CFDSpeciesMap, click the ellipsis (...) next to a CFD species.

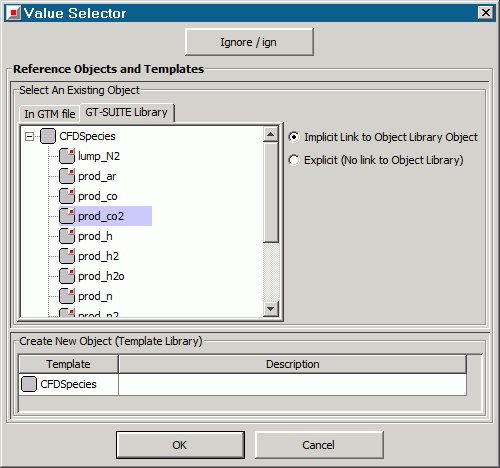

In the Value Selector, select the relevant species from the GT-SUITE Library tab and click OK.
