Converting to a Two-Dimensional Mesh

You can now convert the three-dimensional mesh to two dimensions.

There are special requirements in Simcenter STAR-CCM+ for converting three-dimensional meshes into two-dimensional meshes. These requirements are:

The grid must be aligned with the X-Y plane.
The grid must have a boundary plane at the Z = 0 location.

The mesh that is imported for this tutorial is built with these requirements in mind. Were the grid not to conform to the above conditions, it would have been necessary to realign the region using the transformation and rotation facilities in Simcenter STAR-CCM+.

To convert the mesh to two dimensions:

Right-click the Scenes node and then select New > Mesh.
In the top menu bar, select Mesh > Convert to 2D....

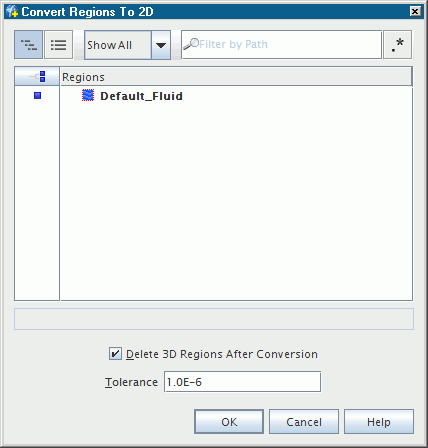

In the Convert Regions To 2D dialog, activate Delete 3D Regions After Conversion.
Click OK.

The mesh conversion takes place and the new two-dimensional mesh is shown, viewed from the z-direction, in the Mesh Scene 1 display.

Note The mouse rotation option is suppressed for two-dimensional scenes.
Right-click the Continua > Physics 1 node and select Delete.
In the Confirm Object Deletion dialog, click Yes.
