Setting the Material Properties

Define the materials corresponding to each of the mixture components under the Phases node.

To define the phases and set the material properties:

In the Chambers continuum, select the Models > Multiphase > Phases node and create a new phase.
Rename the Phase 1 node to H2O.

For the H2O phase, select the following models:


Group Box	Model
Material	Liquid
Equation of State	Constant Density

Click Close.
Create a second phase and rename it to Air.

For the Air phase, select the following models:


Group Box	Model
Material	Gas
Equation of State	Ideal Gas

Click Close.

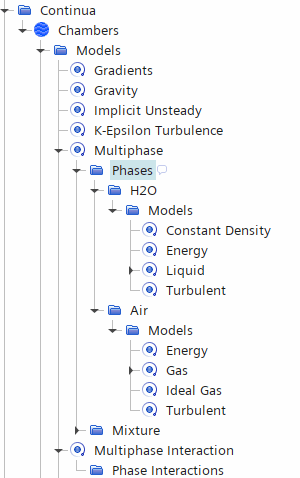

The Multiphase node contains the phase model objects as shown below:

The default selections for materials—water and air—are appropriate for this exercise, so there is no need to replace them with other materials from the Simcenter STAR-CCM+ material database. The existing material properties for air are suitable but the dynamic viscosity of water must be changed.

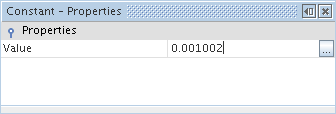

Select the H2O > Models > Liquid > H2O > Material Properties > Dynamic Viscosity > Constant node and change the dynamic viscosity Value to 0.001002 Pa-s.
Save the simulation.
