Generating the Volume Mesh

The meshing models and mesh reference values for this simulation have already been set up. A volumetric control has been created for mesh refinement, to capture the separation behind the cylinder, and to capture the vortex shedding.

The mesh is ready to be generated.

Click (Generate Volume Mesh) in the Mesh Generation toolbar.

To visualize the volume mesh:

Right-click the Scenes node and select New > Mesh.

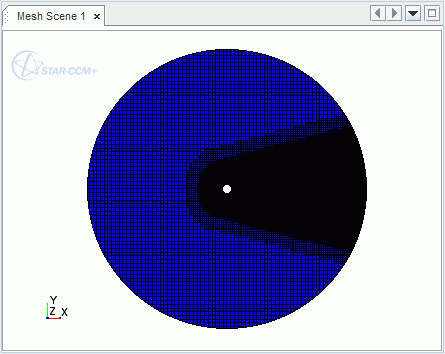

The mesh appears as shown below.
