Checking the Boundary Icons

After a successful intersection process, the interface boundary icons under the Representation node become active.

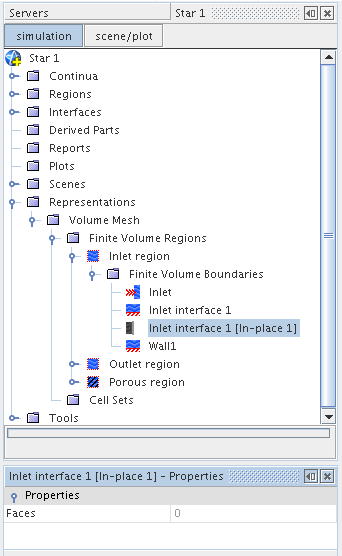

An active interface boundary icon has an appropriate color applied to it. If an interface boundary contains zero faces after intersection then the icon under the Representations node remains grayed out, indicating that the intersection process was unsuccessful. The number of Faces in the Properties window also remains at zero, as shown below:

Additionally, check the intersection report for error messages and attempt to display the interface boundaries to further confirm that the interface intersection was not done.

Note: The boundary and interface icons under the original Regions node are not grayed out regardless of whether they contain faces or not. The intersection process affects the Representations node icons.
