Preparing a Scalar Scene

View the Mach number profile during the run to monitor the supersonic flow region above the airfoil.

Use the following steps:

Create a scalar scene.
A new Scalar Scene display appears.
Right-click the scalar bar at the bottom of the display and select Mach Number > Lab Reference Frame from the Coloring Properties dialog.

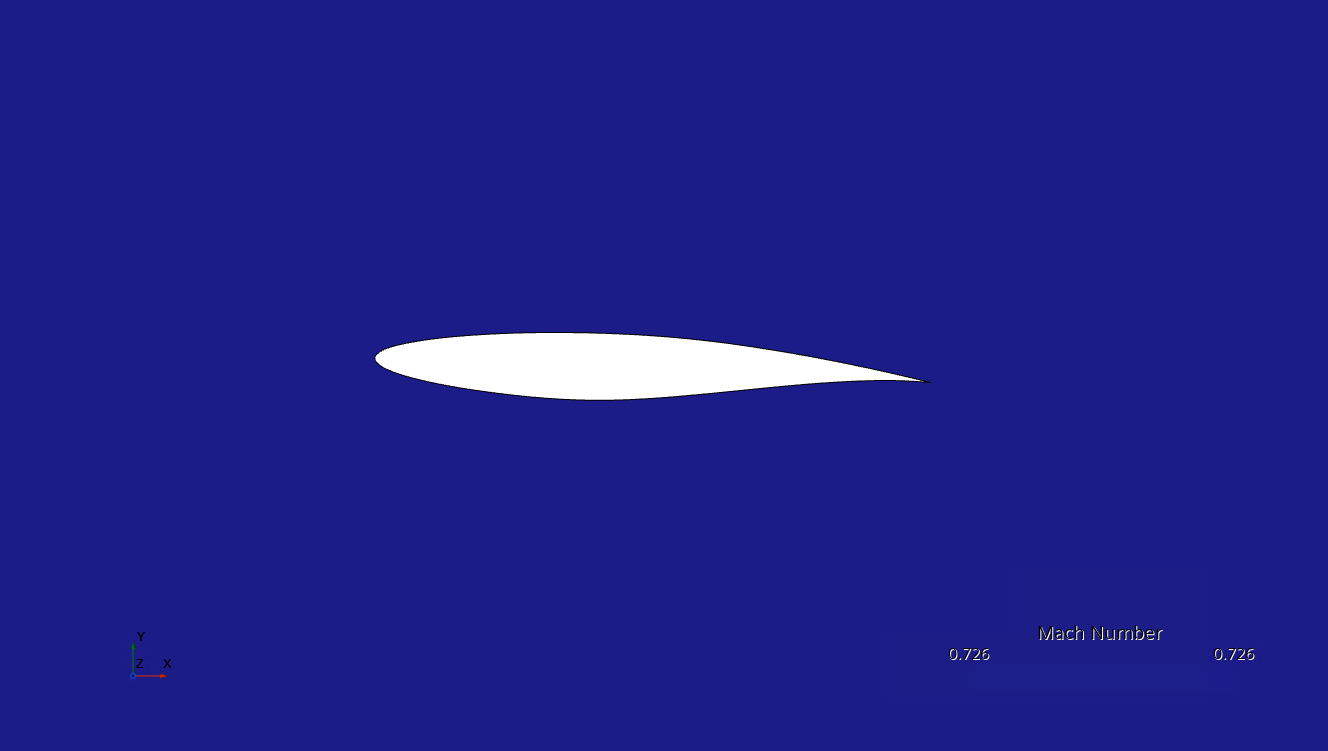

Initialize the run by clicking Initialize Solution in the toolbar, then use the middle mouse button to zoom in on the airfoil in the center of the scalar scene.
To change the style of the Mach number contours, select the Scalar Scene 2 > Scalar 1 node and set Contour Style to Smooth Filled.
