Running the Simulation

Preparation of the simulation is now complete. You run the simulation and monitor the results. The Volume Fraction of Particles scene and the Volume Fraction Plot show the effects of the particle migration in the shear flow.

To run the simulation:

Click (Run) in the Solution toolbar.

If left alone, the simulation continues until 500 seconds of physical time are complete.

As well as observing the progress of residuals during convergence, an interesting feature to follow is the development of the particle volume fraction.

Open the Volume Fraction of Particles scene and the Volume Fraction Plot and monitor the particle volume fraction as the particles migrate in the shear flow.

When the simulation starts, a wave of particles pushes away from the rotating wall and travels towards the outer edge. After about 120 seconds of physical time, the initial surge of particle migration settles to a volume fraction gradient that ranges from about 0.42 at the inner wall to about 0.58 at the outer wall. The gradient continues to develop as the simulation proceeds. When the simulation ends, after 500 seconds, the results are close to the experimentally-observed volume fraction distribution.
When the simulation has finished running, save it.

The following examples illustrate the development of the particle volume fraction in the first 120 seconds of the simulation.

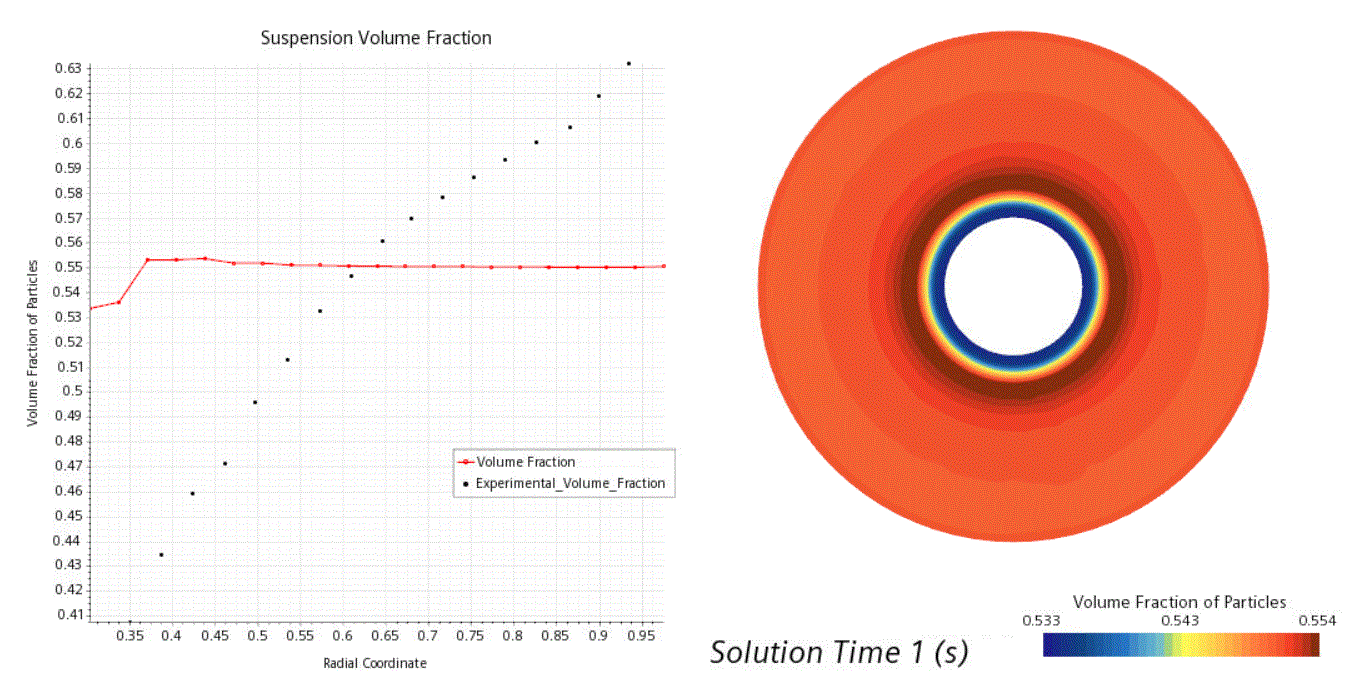

One Second:

The particles near the rotating wall move away, forming a peak in particle volume fraction.

Five Seconds:

The region of peak particle volume fraction travels towards the outer edge of the Couette device.

20 Seconds:

The particle volume fraction close to the rotating wall continues to drop. Particle migration effects can be seen at the outside wall.

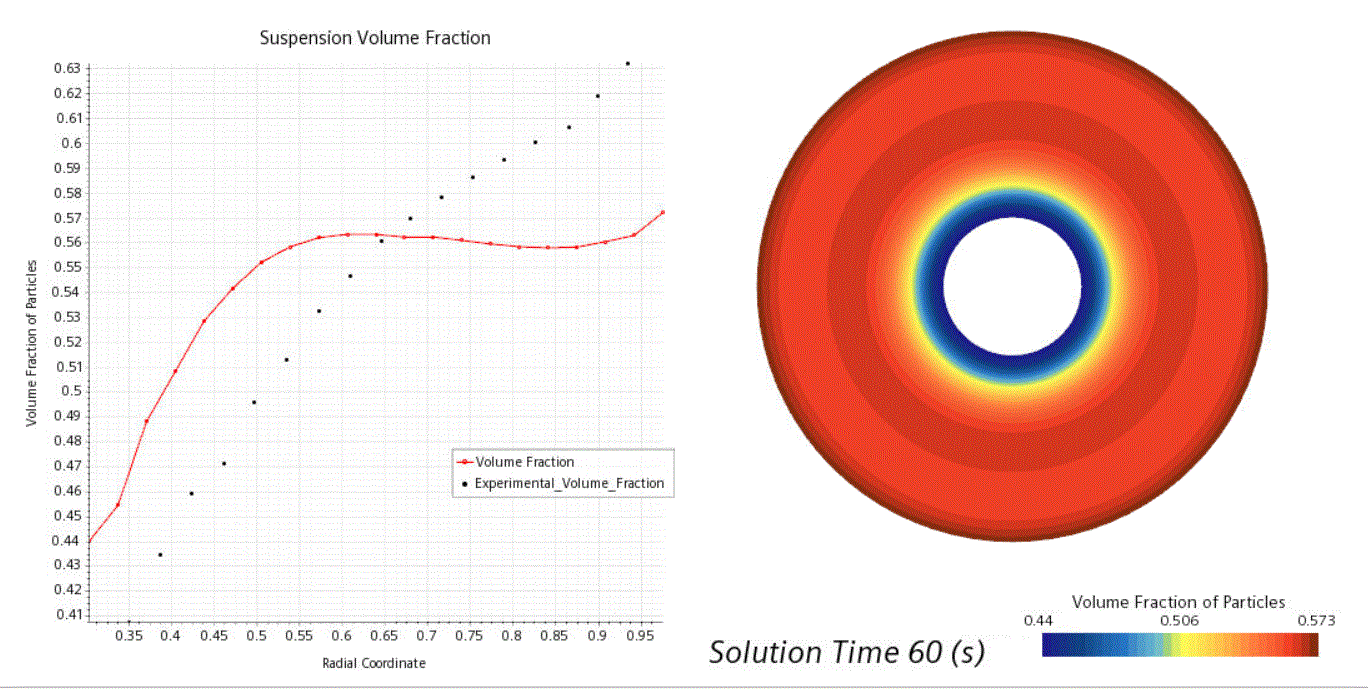

60 Seconds:

The initial surge of particle migration starts to ease off.

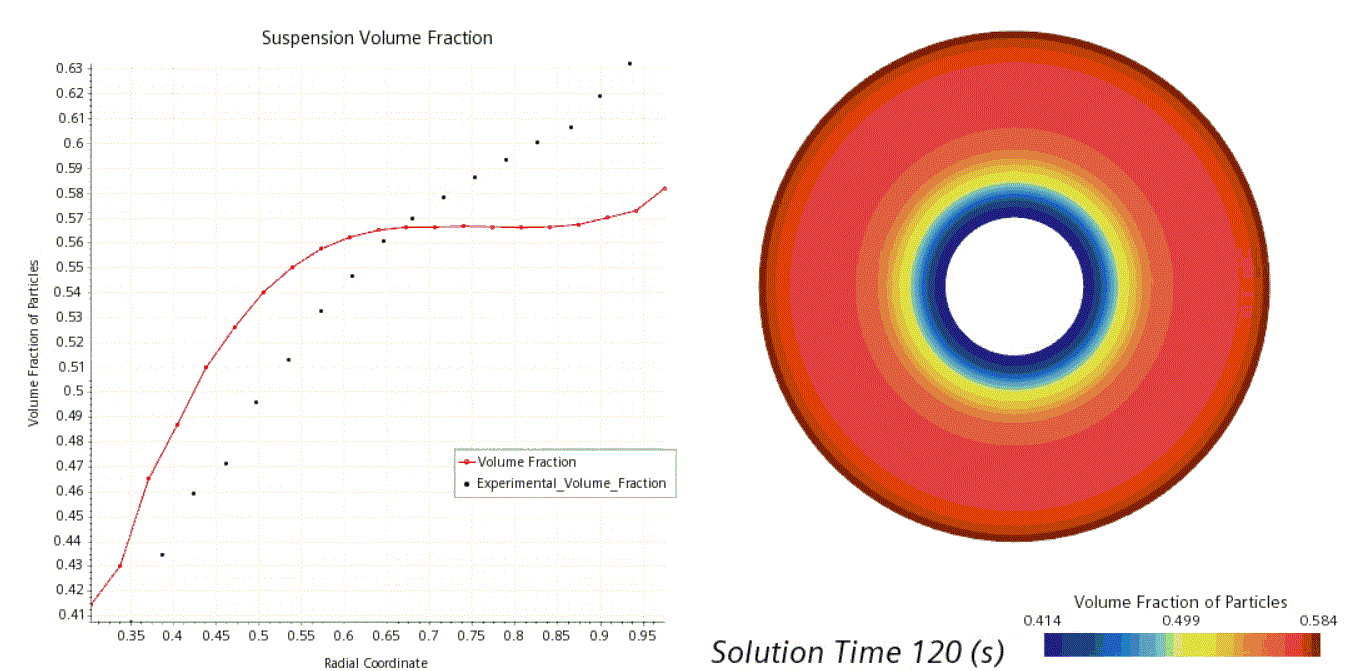

120 Seconds:

The particle volume fraction is settling into a gradient, with a minimum of about 0.42 near the inner wall and a maximum of about 0.58 at the outer wall. The gradient continues to develop as the simulation proceeds.
