Selecting the Physics Models

You simulate the flow of the PMMA particles suspended in a Newtonian liquid using the Eulerian Multiphase model. To account for the rheological behavior of the suspension, you require the Suspension Rheology model. The fluid velocity is low so the flow is laminar.

To select the physics models:

Rename the physics continuum Continua > Physics 1 as Suspension.

For the physics continuum, Continua > Suspension, select the following models in order:


Group Box	Model
Enabled Models	Two Dimensional (Pre-selected)
Time	Implicit Unsteady
Material	Multiphase Multiphase Interaction (selected automatically)
Multiphase Model	Eulerian Multiphase (EMP) Gradients (selected automatically)
Viscous Regime	Laminar
Optional Models	Suspension Rheology

Click Close.

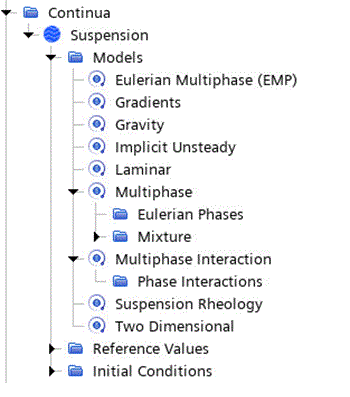

To review the models, open the Suspension > Models node.
Save the simulation.
