Computing Part Curves

You can recompute part curves at any time. This feature lets you modify the curve definition using a number of different options, such as when more curves are needed.

To compute part curves:

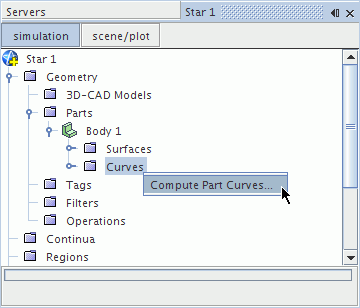

Right-click the Curves node for the leaf-level part and select Compute Part Curves...:

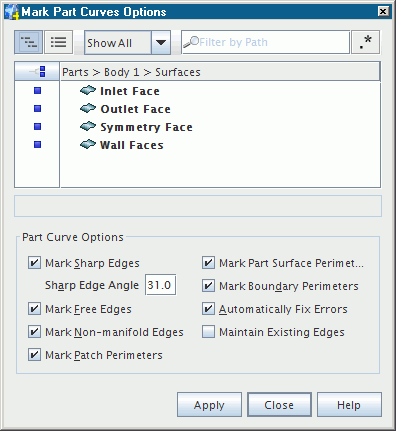

The Mark Part Curves Options dialog appears:
Select the part surfaces for which the curves are required.
Select the required Part Curve Options which are used for the curve computation. The available options are:
- Mark Sharp Edges—when activated, Simcenter STAR-CCM+ creates a part curve for each of the edges of a curve, provided that the angle between the edges is greater than the specified Sharp Edge Angle.
- Mark Free Edges—when activated, Simcenter STAR-CCM+ creates a part curve for each free edge.
- Mark Non-manifold Edges—when activated, Simcenter STAR-CCM+ creates a part curve for each non-manifold edge.
- Mark Patch Perimeters—when activated, Simcenter STAR-CCM+ creates a part curve for each curve that delimits a surface patch.
- Mark Part Surface Perimeters—when activated, Simcenter STAR-CCM+ creates a part curve for each curve that delimits a part surface.
- Mark Boundary Perimeters—when activated, Simcenter STAR-CCM+ creates a part curve for each curve that delimits a boundary.
- Automatically Fix Errors—when activated, Simcenter STAR-CCM+ fixes all errors in explicit feature edges.
- Maintain Existing Curves—when activated, Simcenter STAR-CCM+ preserves the existing part curves.
Clicking Apply proceeds with the operation.
Once it is complete, click Close.

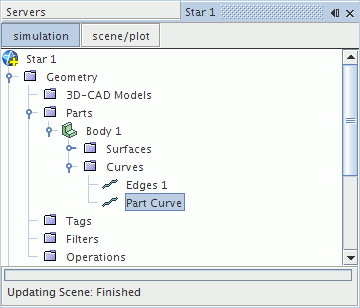

The new part curves are stored in a node that is called Part Curve:

When computing new part curves, existing part curves in other nodes corresponding to the selected options are moved into the new part curve node.
