Selecting the Physics Models

The water flows down the inclined plane due to gravity. The two-phase flow of water film and air is modeled using a hybrid Film-VOF approach.

To select the physics models:

For the physics continuum, Continua > Physics 1, select the following models in order:


Group Box	Model
Enabled Models	Three Dimensional (Pre-selected)
Time	Implicit Unsteady
Material	Multiphase Multiphase Interaction (Selected automatically)
Multiphase Model	Volume of Fluid (VOF) Segregated Flow (Selected automatically) Gradients (Selected automatically)
Viscous Regime	Laminar
Optional Models	Fluid Film Gravity

Click Close.

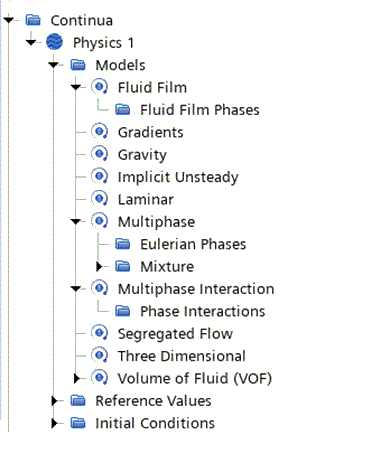

To review the models, open the Physics 1 > Models node.
Save the simulation.
