Specifying the Transition Volume Fraction

The transition between the fluid film and VOF phase models is based on the volume fraction of liquid (the total of the fluid film phase and the VOF phase combined) at the interface and the transition volume fraction $α_{T R A N S}$ that you specify for the interface.

Fluid film transitions into the VOF phase when the total volume fraction in the neighbor volume cell is greater than $α_{T R A N S}$ . The VOF phase transitions into fluid film when the total volume fraction is less than $α_{T R A N S}$ . To ensure stability, mass is transferred at a finite rate – the transition of mass from one phase to the other takes place over a few iterations rather than in a single time-step.

For more information, see Modeling a Fluid Film with Different Characteristic Length Scales.

An appropriate transition volume fraction $α_{T R A N S}$ for this simulation is a constant value of 0.5.

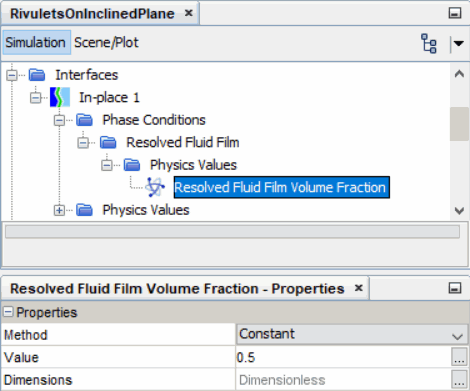

Select the Interfaces > In-place 1 > Phase Conditions > Resolved Fluid Film > Physics Values > Resolved Fluid Film Volume Fraction node and set Value to 0.5.
Save the simulation.
