Setting Initial Conditions and Gravity

At the start of the simulation, the simulation domain contains air only. Set the gravity vector to operate in the negative Y direction.

To set the initial conditions and gravity for the Physics 1 continuum:

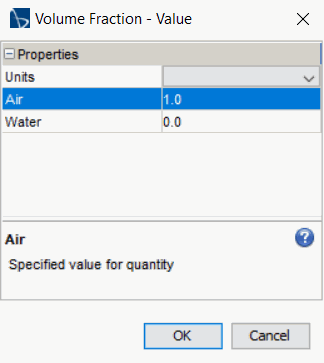

Select the Physics 1 > Initial Conditions > Volume Fraction node and set Value to [1.0, 0.0].
Select the Physics 1 > Reference Values > Gravity node and set Value to [0.0, -9.81, 0.0].
Save the simulation.
