Selecting the Exothermic Solid Model

To select the Exothermic Solid model:

Include the following models with your selections:
- The Solid material model
- The Segregated Solid Energy model
- The Implicit Unsteady time model
- The Casting optional model

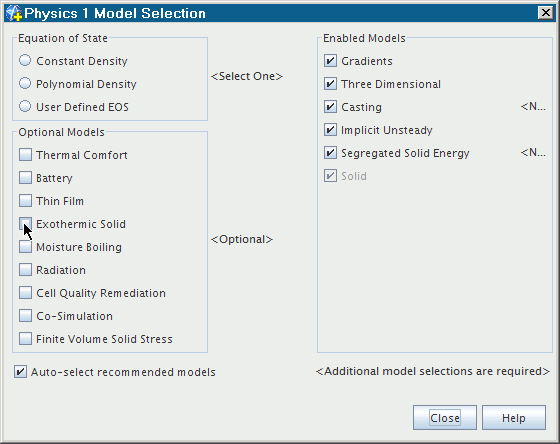

Select the Exothermic Solid model from the Optional Models group box.

When you close the model selection dialog, the Exothermic Solid model is shown in the list under the Continua > Physics > Models node. The model has no user-defined properties.
