Setting the Lagrangian Phase Model Properties

You specify the appropriate properties of the Lagrangian phase models.

To set the properties for the Lagrangian Phase models:

Edit the Lagrangian Phases > Phase 1 > Models node and set the following properties:


Node	Property	Setting
Solid > Al > Material Properties > Density > Constant	Value	1200 kg/m^3
Drag Force > Drag Coefficient	Method	Schiller-Naumann

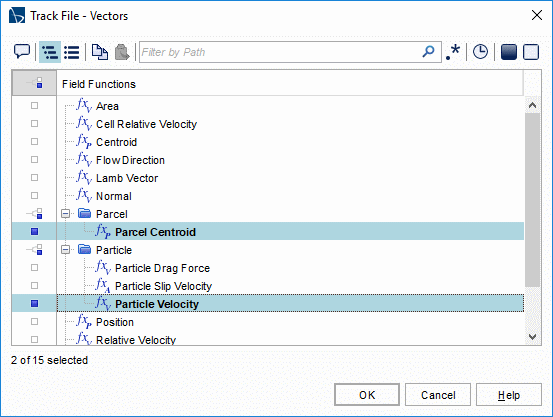

Track File	Vectors	Parcel > Parcel Centroid Particle > Particle Velocity

Save the simulation.
