Setting Up the Injector

You set up an injector to introduce the particles of the dispersed Lagrangian phase into the solution domain. The injector defines the initial state of the particles.

To set up the injector:

Right-click the Injectors node and select New.

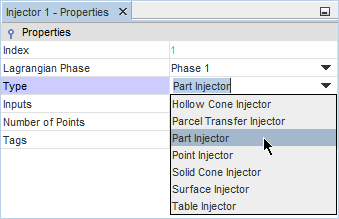

Select the Injectors > Injector 1 node and set Type to Part Injector.

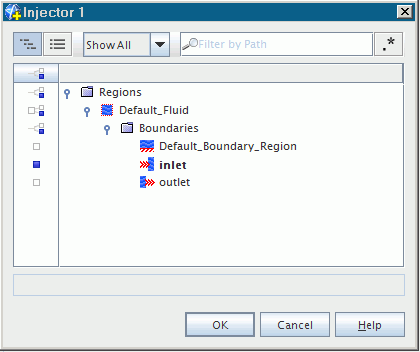

Set Inputs to Regions > Default Fluid > Boundaries > inlet.
Click OK.

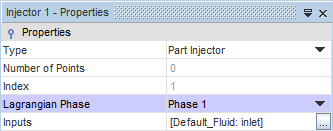

Set Lagrangian Phase to Phase 1.

The Number of Points property is 0 until the injection points are calculated during solution initialization. Specify the conditions and values of the injector to define the particles.

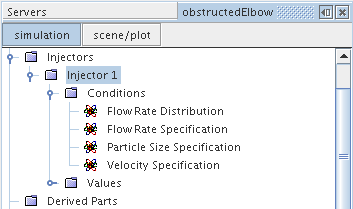

Open the Injectors > Injector 1 node.

Edit the following nodes and set the appropriate properties:


Node	Property	Setting
Conditions > Flow Rate Specification	Method	Volume Flow Rate
Flow Rate Distribution	Method	Per Injector This signifies that the volume flow rate applies to the whole injector, rather than per injection point.
Velocity Specification	Method	Magnitude + Direction
Values > Volume Flow Rate	Value	6.4516E-7 m³/s
Particle Diameter	Value	4.0E-5 m
Velocity Magnitude	Value	10 m/s

Save the simulation.
