Importing the es-ice or pro-STAR Solution Data

To import solution data from es-ice or pro-STAR:

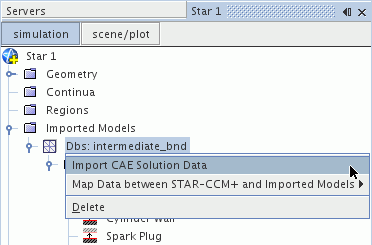

Right-click the CAE model node and select Import CAE Solution Data.

The Open dialog appears.
Select the .usr file in a coded (ASCII) format.
Selecting a file opens the Import Data Options dialog.
The options available in the panel are described below:
- Data Type – Currently, only cell data is available.
- Registers – Selects the Registers that contain the required post-processing data. If you choose to import a Register that does not contain any data, the import fails. The following options are available:
  - Scalar (Register 4) – Selects the scalar data that is stored in Register 4.
  - Vector (Registers 1-3) – Selects the vector data that is stored in Registers 1-3.
  - Both – Selects both the vector and scalar data that is stored in Registers 1-3 and 4 respectively.
  - All – Selects all Registers. This is recommended when importing data from es-ice.
  - Register n – Selects Register n.
- Data Format – Currently, only coded format files are permitted.
- Cell Offset – to the cell ID numbers in the solution data. Typically this option is not required, especially you have followed the guidelines for preparing data in es-ice or pro-STAR.
- Heading – Label used to identify the Register in Simcenter STAR-CCM+. For example, using the default heading (Register) stores the imported data in a field function called Imported Register n, where n is the Register number.
