Activating the Harmonic Balance Turbulence Models

To use turbulence with the Harmonic Balance method:

Right-click the Continua > Physics 1 > Models node and choose Select models...
Select the appropriate models. See Activating the Harmonic Balance Model.
Select Turbulent in the Viscous Regime group.

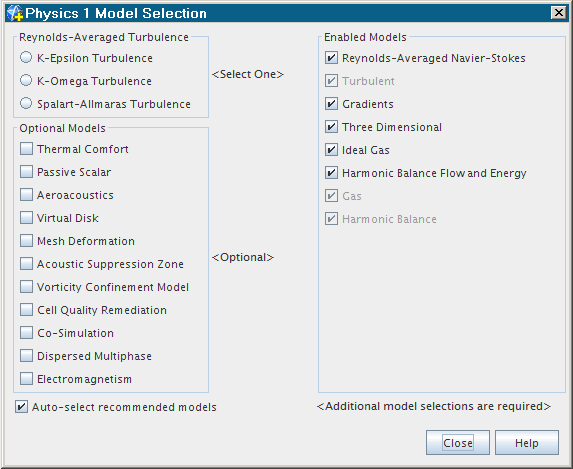

Three types of turbulence, K-Epsilon, K-Omega, and Spalart-Allmaras, become available in the model selection dialog (Physics 1 Model Selection in the following screenshot), if you have the Auto-select recommended models checkbox activated.

 Choose between the K-Epsilon, K-Omega, and Spalart-Allmaras models. Variants of each type of turbulence exist for use with Harmonic Balance.
- To use Realizable Two-Layer K-Epsilon:
  - Select K-Epsilon Turbulence in the Reynolds-Averaged Turbulence group.

    The HB Realizable Two-Layer K-Epsilon model is selected automatically.
- To use any of the other K-Epsilon models:
  - Deactivate the Auto-select recommended models checkbox.
  - Select K-Epsilon Turbulence in the Reynolds-Averaged Turbulence group.
    The following K-Epsilon models become available:
    - HB Realizable K-Epsilon
    - HB Realizable K-Epsilon Two-Layer
    - HB Standard K-Epsilon
    - HB Standard K-Epsilon Low-Re
    - HB Standard K-Epsilon Two-Layer
- To use either of the K-Omega models:
  - Deactivate the Auto-select recommended models checkbox.
  - Select K-Omega Turbulence in the Reynolds-Averaged Turbulence group.

    The following K-Omega models become available:
    - HB Standard (Wilcox) K-Omega
    - HB SST (Menter) K-Omega
- To use Standard Spalart-Allmaras:
  - Select Spalart-Allmaras in the Reynolds-Averaged Turbulence group.
  - The Harmonic Balance Standard Spalart-Allmaras turbulence model is selected automatically.
