Region Types Reference

Regions are assigned types that models within their associated continuum use to determine what specific conditions and values are required.

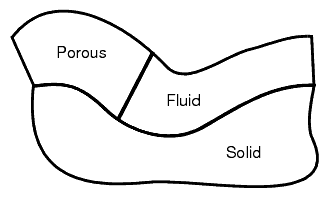

STAR-CCM+ recognizes three different region types: fluid, porous, and solid. The availability of each type depends on the continuum that is associated with the region. Fluid and porous regions are available only if the continuum is a gas or liquid. Solid regions are available only if the continuum is a solid.

STAR-CCM+ initially assigns regions types upon mesh import (based on information that is contained in the mesh being imported). Region types can also be reassigned within STAR-CCM+.
