Creating Blade Rows

To create a blade row:

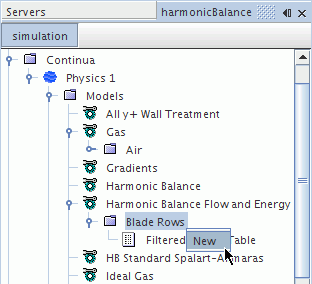

Right-click the Harmonic Balance Flow and Energy > Blade Rows node, and select New from the pop-up menu.

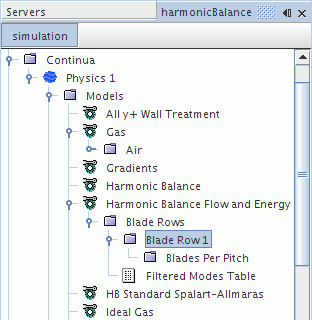

A new blade row appears under the Blade Rows node. The default name Blade Row is concatenated with a number to ensure that the name is unique.

A child node Blades Per Pitch is created under the Blade Row node.

The properties of the blade row object include the ability to set the number of modes.
