Browsing Sets

Browsing sets allows you to cycle and display groups of continuous entities within the currently selected set.

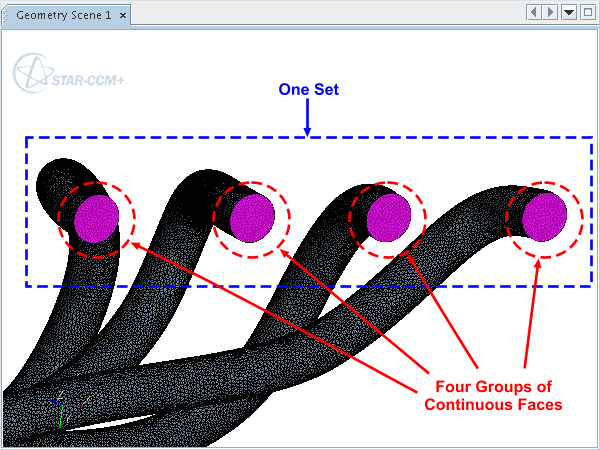

For example, in the diagram below, all the selected faces are in one set, but there are four groups of continuous faces.

To browse, first select a Set from the drop-down menu.
Then, select Browse from the Action group box.

The default options when browsing sets display the group of continuous entities, and two neighboring faces, in order to identify the surrounding area. Using the browse buttons also selects the group of continuous entities in the Graphics window.

While browsing, two options control the viewing of sets:

Reset View resets the view to zoom in on the selected entities.
If you deactivate the Reset View option, the view remains the same.
Reset Displayed resets the displayed faces, edges, and vertices to the selected entities, and two neighbors.
If you deactivate the Reset Displayed option, the displayed entities remain the same.

Use the browse buttons to cycle through and select continuous groups of entities within the set.
