Splitting Non Contiguous Regions

Non-contiguous region splitting creates regions when the original region contains surface or volume meshes that are spatially separated.

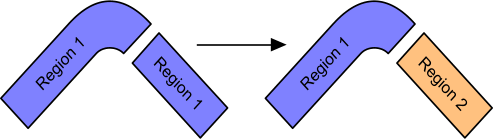

The following diagram illustrates non-contiguous region splitting:

The following list defines contiguous regions:

For surface meshes, each face shares an edge with another face in the region.
For volume meshes, each cell shares a face with another cell in the region.

To split non-contiguous regions:

Right-click a region and select Split Non-Contiguous.
In the Split Non-Contiguous Regions dialog, set the region splitting options.

To change the selected regions, click the Select button.
Click Apply to split regions.
If you attempt to split contiguous regions, the Output window displays a warning.
