Using the Power Session License Feature

The Power Session license feature lets you run one job on an unlimited number of cores. A list of the different license features is provided in the Simcenter STAR-CCM+ Licensing Guide section. When this type of license is used, other licenses such as ccmpsuite remain inactive.

If a job is started using the Power Session, only one copy of the ccmppower license is checked out. Contact Siemens Digital Industries Software to obtain this license.

Starting from the Workspace

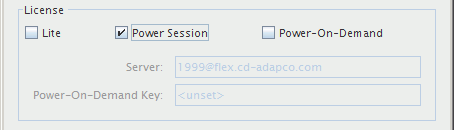

You can activate the Power Session feature using a checkbox in the Create a New Simulation and Load Simulation dialogs.

When you tick this checkbox, the option -power appears in the command line of the dialog automatically.

Starting from the Command Line

The command line includes the option -power as follows:

starccm+ -power -np 2

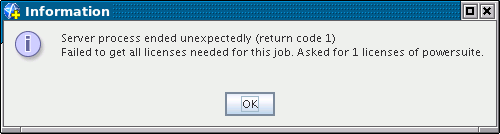

If the license is not available when you attempt to activate it, Simcenter STAR-CCM+ generates a message like this one:
