Loading the Initial Simulation

For this simulation, you are provided with a starting file that includes the required fluid region and physics continuum. Load the starting simulation in Simcenter STAR-CCM+ and generate the fluid mesh.

To load the initial simulation:

Launch Simcenter STAR-CCM+.
Select File > Load...
In the Load a File dialog, click Browse...
In the Open dialog, navigate to the couplingWithCaeCodes folder of the downloaded tutorial files.
Select sprayDryer_start.sim and click Open.
In the Load a File dialog, click OK.

The initial simulation contains predefined mesh operations. To generate the fluid mesh:

Click (Generate Volume Mesh).

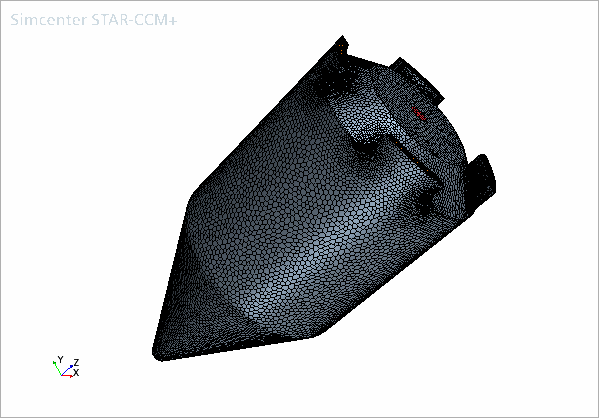

To visualize the mesh, create a mesh scene and position the geometry as shown:
Save the simulation to your working directory as sprayDryer.sim.
