Centrifugal Force

When a fluid film flows across a curved surface, the inertial pressure causes a spreading or gathering of the liquid. The liquid spreads due to the inertial force that is exerted by a concave wall surface. The opposite effect, a gathering of the liquid towards the center, occurs on a convex surface.

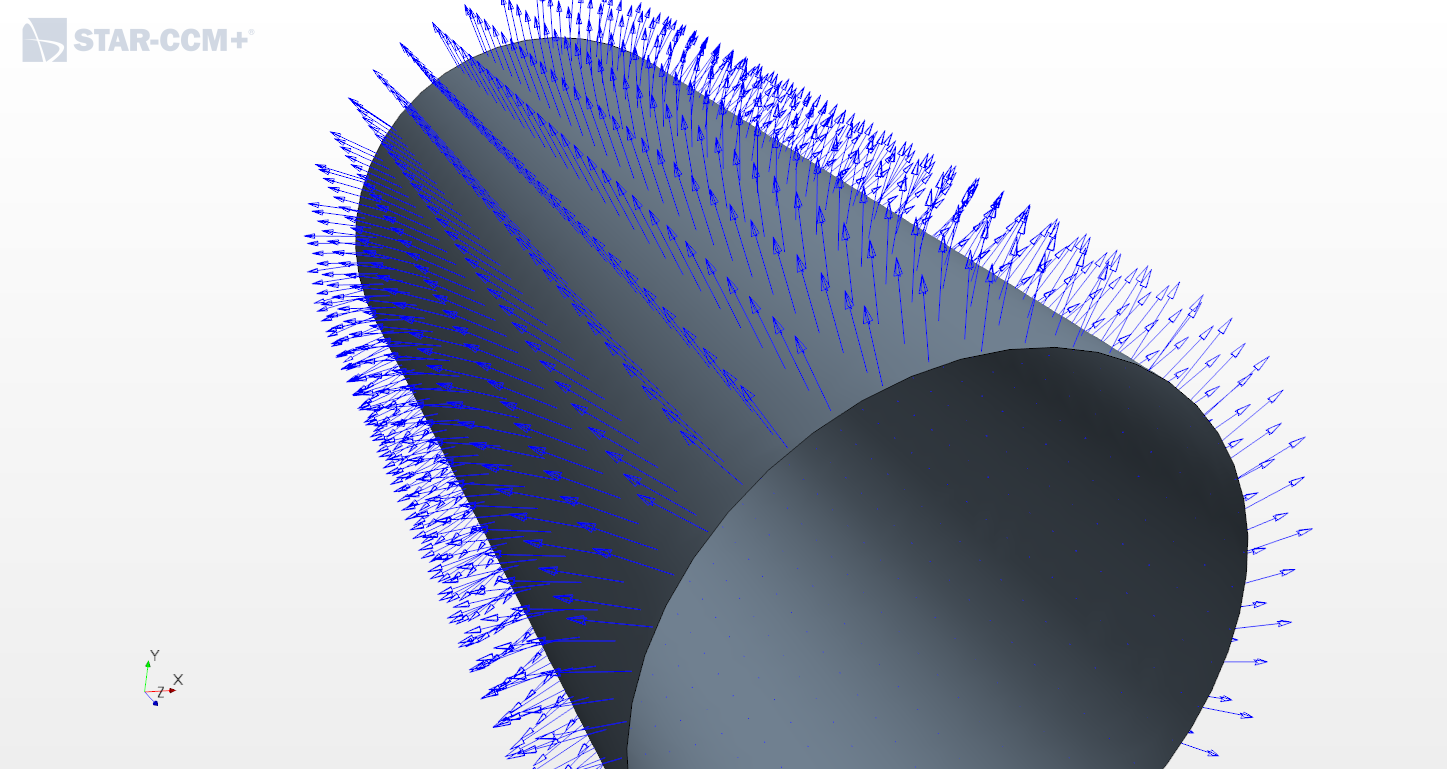

Given the surface normals $n$ (as shown in the example above), the normal curvature of the surface $S$ (convex notion in this example) can be expressed as a tensor quantity:

Figure 1. EQUATION_DISPLAY

K = \nabla_{S} n

(2733)

If $v_{f}$ is the velocity of the fluid film phase and ${\hat{v}}_{f}$ its unit vector, the normal curvature of the surface in direction of $v_{f}$ can be denoted:

Figure 2. EQUATION_DISPLAY

K_{{\hat{v}}_{f}} = {\hat{v}}_{f}^{T} K {\hat{v}}_{f}

(2734)

Therefore, the centrifugal acceleration due to the surface normal curvature in the flow direction is:

Figure 3. EQUATION_DISPLAY

a_{c} = v_{f}^{T} v_{f} \cdot K_{{\hat{V}}_{f}} \cdot n

(2735)

The resulting force that is added as a source term to the fluid film momentum conservation equation (Eqn. (2722)) becomes:

Figure 4. EQUATION_DISPLAY

f_{c} = m \cdot a_{c}

(2736)
