Reflecting a Part

Reflecting a part can be used to reposition it according to its mirror reflection in a given axis.

This transformation can be useful when the original part is a half model of the geometry. You can create the full model by first duplicating the part and then reflecting the copy (or original).

To reflect a part:

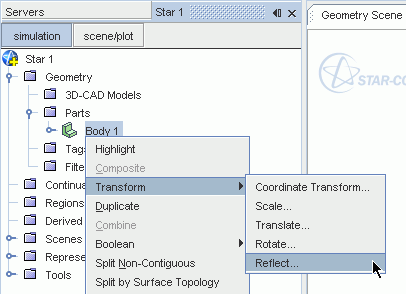

Right-click the part node and select Transform > Reflect... from the pop-up menu:

The Reflect Parts dialog appears:
Enter the Normal Vector values and select the Coordinate System before clicking Apply.

If a valid scene is open, the part display is updated.
Clicking Apply a second time without changing the vector component values returns the part to its original position.
