What Are Parts?

There are three different types of part that can be used in a Simcenter STAR-CCM+ simulation:

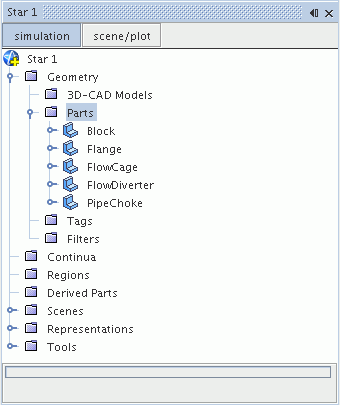

Geometry parts
These parts represent the model geometry, and are contained within the Geometry > Parts manager node of the object tree.

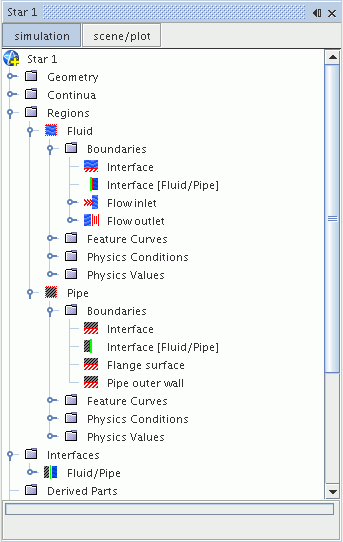

Model parts, including regions, boundaries, and interfaces
These represent the discretized portions of the geometry to be analyzed, on which physics models are applied. These parts are contained within the Regions, Boundaries, and Interfaces manager nodes.
Derived parts
These parts are created in a number of ways. They can be used in the definition of analysis reports and for visualizing solution data in scalar and vector scenes. All derived parts are contained within the Derived Parts manager node of the object tree.

Parts can be used as inputs to many other objects in Simcenter STAR-CCM+, such as displayers, reports, tabular data sets, and x-y plots.
