Defining Initial Conditions

Define the manifold initial temperature.

To specify the initial temperature through the manifold using a predefined field:

Double-click the Predefined Fields container in the Model Tree.

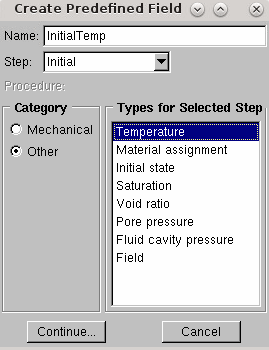

In the Create Predefined Field dialog, set the following properties:


Property	Setting
Name	InitialTemp
Step	Initial
Category	Other
Types for Selected Step	Temperature

Click Continue...

This predefined field must now be applied to a region of the model, and in this case apply it to the whole model via the ALL geometry set:

Click Sets to the bottom right of the viewport.
In the Region Selection dialog, select ALL and click Continue...
In the Edit Predefined Field dialog, set Magnitude to 500 and click OK.
