Selecting a Space Model

To select a Space model, open the Continua node of the simulation tree, then right-click the Physics 1 node.

Select the Select models... item from the pop-up menu.

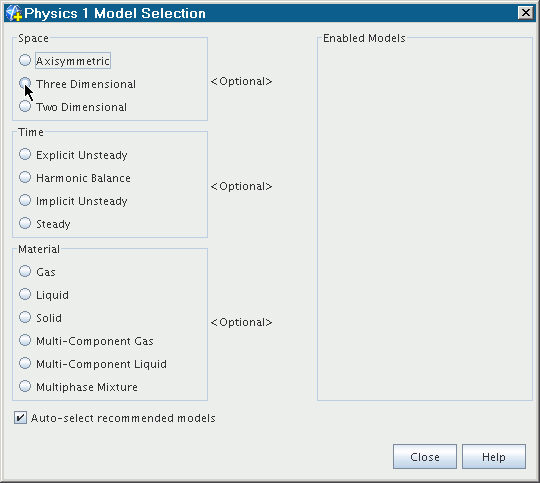

This command opens the Model Selection dialog. Select the correct Space model for the simulation by clicking the relevant radio button.

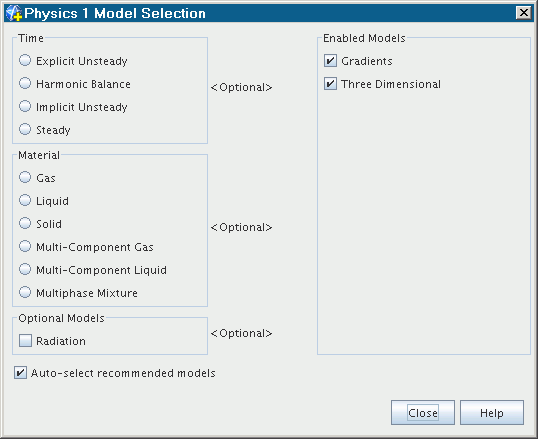

The following model selection dialog shows the Space model activated.
