Setting an Axis

An axis is used to define an axis of rotation when the simulation requires it.

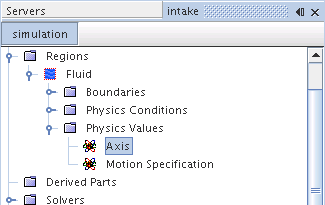

The Axis node, which represents the axis, appears as:

A region value when a space model has been selected for the associated physics continuum, and
A boundary value on a non-slip wall boundary when the tangential velocity specification condition is set to local rotation rate.
The properties of the node define the axis.

This axis definition provides information that is required when Simcenter STAR-CCM+ creates periodic interfaces for a region, and for transformations involving these interfaces. The tangential velocity specification at a boundary also uses the axis definition to specify the local axis and origin of wall rotation.

Axis Properties


Direction	A Cartesian unit vector specifying the direction of the rotation.

Origin	Cartesian position vector specifying the origin of the axis.

Coordinate System	Specifies the coordinate system (laboratory by default) for defining the origin and axis. The drop-down list of this property includes any local coordinate systems that exist in the simulation.
