Creating Sheet Bodies from Sketches

You can create sheet bodies from closed sketches.

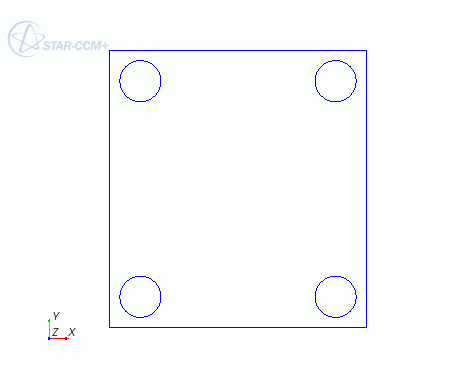

The sketch can contain multiple closed loops as shown below. This feature is useful for creating baffles.

To create a sheet body from a sketch:

Either:
- Right-click the desired sketch in the 3D-CAD feature tree and select Sheets from Sketch.
- Right-click the desired sketch in the 3D-CAD View window and select Sketch > Sheets from Sketch.
The Convert Sketch to Sheet panel appears. The selected sketch is listed in the panel.

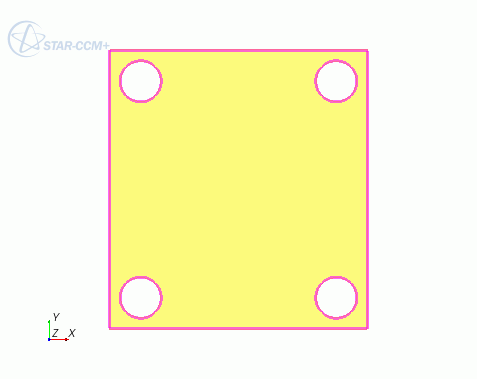

A preview of the operation appears in the 3D-CAD View scene.
Click OK.
